Quick Details
Condition: New Place of Origin: Shandong, China (Mainland) Brand Name: shengya Model Number: JZC300 Motor Power: 20HP Mixing Power: 20HP Charging Capacity: 560L Reclaiming capacity: 350L Speed of Mixing Drum: 14rmp Water Supply Mode: pump Working Cycle Period: 25s Discharge Way: hydraulic Outline Dimension: 2300x1800x2400mm Weight: 2400kg
Packaging & Delivery
Packaging Details: Nude package
Delivery Detail: 25days
Specifications
Diesel engine concrete mixer with hosit,
big capacity
Detailed Product Description

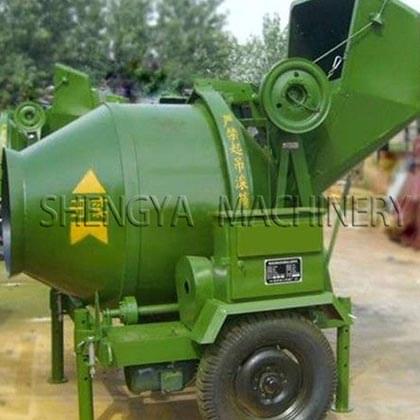

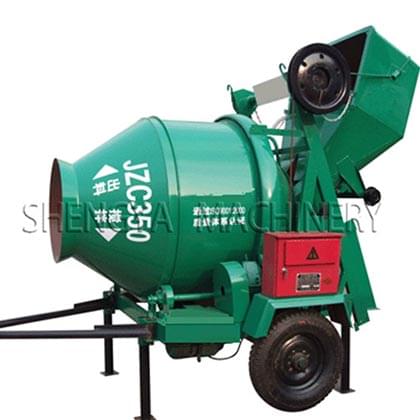

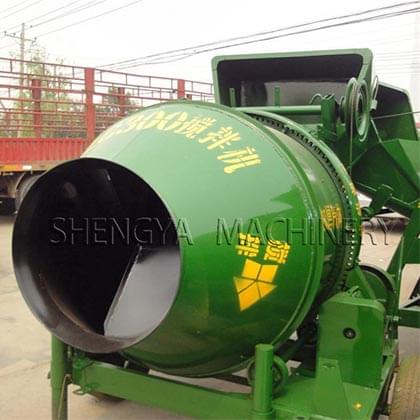

Since the machine is off-bipyramidal reversal discharging mobile concrete mixer, mixing semi-rigid plastic and concrete. Stir mixing tube is transferred, a reversal expected. Each tank can be mixed with 300Lconcrete (after absorption of concrete volume), to produce 10-14 million cubic meters per hour. Applies to construction sites, roads, bridges projects and small and medium-sized concrete structures plant. Mixing fixed, it can dig the hole, the hopper be flush with the ground, feed convenience and reduce labor intensity. The machine is a novel structure, with high efficiency, mixing good quality, light weight, form aesthetic advantages, is a more advanced model.
Technical parameters
| JZC250 | JZC350 | JZC300 | ||
| Product quantity | Feeding capacity | 250L | 350L | 300L |
| Discharging volumn | 320L | 560L | 480L | |
| Productivity | 6-8m3/h | 10-14m3/h | 9-12m3/h | |
| Roating speed of stirring shaft | 17r/min | 14r/min | 14r/min | |
| Max.diameter of aggregates | 60mm | 60mm | 60mm | |
| Accuracy of water supply | error≤2% | error≤2% | error≤2% | |
| Electric motors | Mixer motor | 4KW | 5.5KW | 4KW |
| Lift motor | 4KW | 5.5KW | 4KW | |
| Pump motor | 0.55KW | 0.55KW | 0.55KW | |
| Tyre standard | 6.50-16 | 6.50-16 | 6.50-16 | |
| Max.transport speed | 15km/h | 15km/h | 15km/h | |
| Overall size | 2260×1990×2750mm | 2766×2140×3000mm | 2260×1990×2750mm | |
| Total mss | 1300kg | 1950kg | 1650kg |
